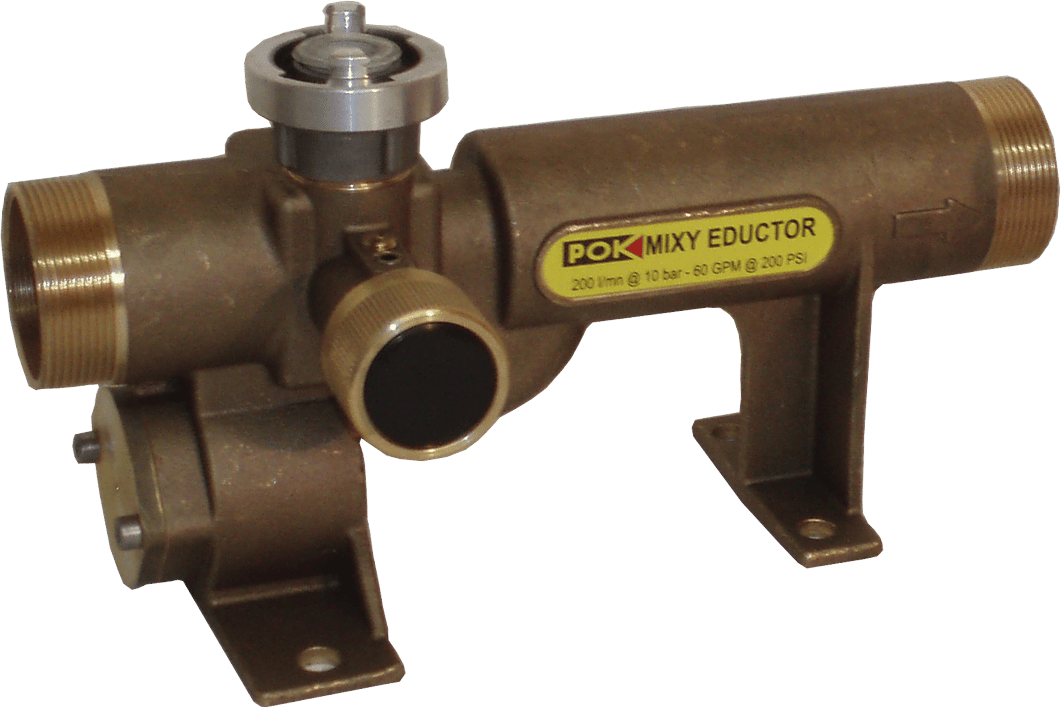

Eductor mixy bronze

By-pass system, marine environment, fixation foot,
metering device from 0 to 6%.

• Nominal pressure: PN16
• Flow rate: 200, 400 or 800 lpm @ 10 bar
• Material: bronze
• Body type: moulded
• Non-return valve: YES
• Control valve: YES
• Suction percentage adjustment: 0, 1%, 2%, 3%, 4%, 5% and 6%
• Pressure loss: 35%
• Supplied with pick-up tube: YES
• Options: Metering device 0,1%, 0,5% and 1% for eductors 200, 400 and 800 lpm
