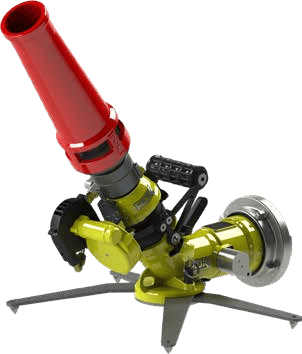

Montmirail

PORTABLE MONITORS

Diffuser with autoregulated flow rate 2000
lpm. Less than 10kg, up to 4000 lpm, safety
anti-lifting, automatic sweeping.

• Inlet : male 2’’ ½ BSP
• Ø waterway : 80 mm
• Nominal pressure : PN16
• Material : alluminium alloy
• Surface treatment: polyester coating and hard anodisation
• Vavle type : ball valve
• Operation : by lever
• Horizontal movement: from -22.5 ° to + 22,5 °
• Horizontal adjustment of automatic sweeping by valve
• Vertical movement : from + 25 ° to + 85°
• Vertical adjustment: by handle
• Safety: anti-sliding, anti-knocking, anti-lifting, locking of the legs, anchoring strap, shutoff
• Carrying handle : YES
• Foldable legs : YES
• Options: Inlet coupling, outlet equipment, inlet siamese
