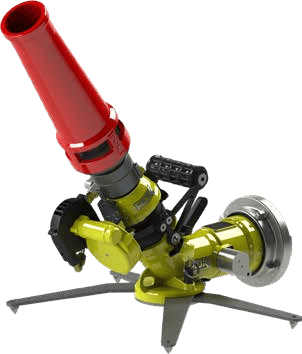

Montmirail
Back
PORTABLE MONITORS
Diffuser with autoregulated flow rate 2000
lpm. Less than 10kg, up to 4000 lpm, safety
anti-lifting, automatic sweeping
Inlet : male 2’’ ½ BSP
Ø waterway : 80 mm
Nominal pressure : PN16
Material : alluminium alloy
Surface treatment: polyester coating and hard anodisation
Vavle type : ball valve
Operation : by lever
Horizontal movement: from -22.5 ° to + 22,5 °
Horizontal adjustment of automatic sweeping by valve
Vertical movement : from + 25 ° to + 85 °
Vertical adjustment: by handle
Safety: anti-sliding, anti-knocking, anti-lifting, locking of the legs, anchoring strap, shutoff
Carrying handle : YES
Foldable legs : YES
Options: Inlet coupling, outlet equipment, inlet siamese
Download Data Sheet
